We test comprehensively and reliably. With our wide range of equipment, we guarantee results.
Zwick Roell RetroLine univ. testing machine
Technical data
Maximum test force: 20 kN
Load cells: 20 kN; 2 kN; 500 N; 20 N
Crosshead speed: 0.001 mm/min to 1000 mm/min
Usable testing space: 630 x 1430 mm
Accredited in accordance with EN 17025 since January 2017 (for scope, see SAS [Swiss Accreditation Service] homepage,
STS 0634
)
Areas of application
Tensile and compression tests
Breaking strength
Spring constants
Young's modulus
Measurement of force-displacement hysteresis curves

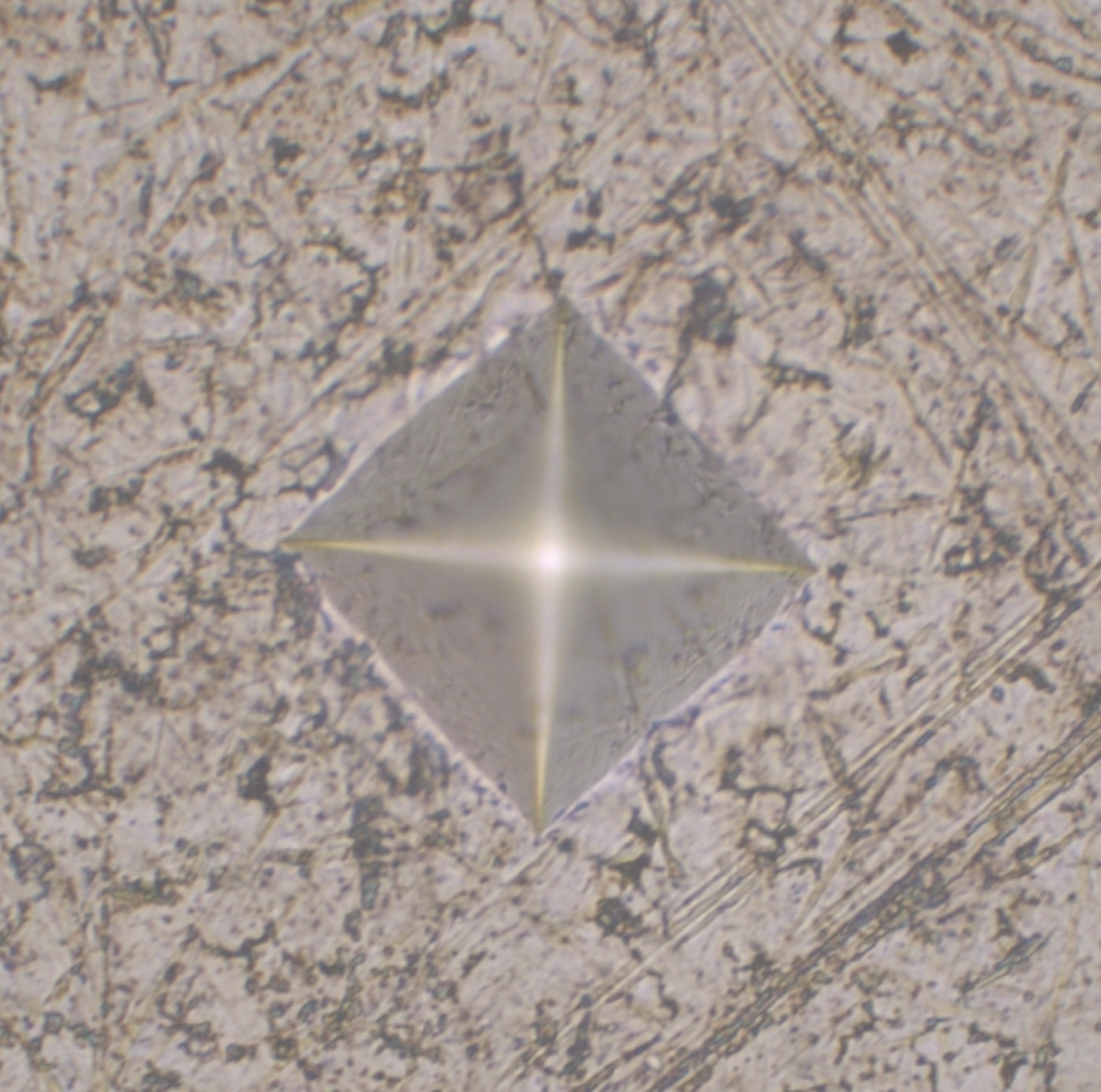

Vickers hardness tester
Technical data
Test forces: 49.03 mN (5p) corresponds to HV 0.005
up to 19.61 N (2kp) corresponds to HV 2
for component hardnesses up to approx. 1200 HV 2
Areas of application
Hardness testing for metallic materials
Shore A and Shore D hardness tester
Technical data
Zwick 7201
Zwick Roell 3114 Shore A
Hardness values from 10 to 90 Shore A
Margin of error: < ± 1 Shore hardness unit
Zwick Roell 3116 Shore D
Hardness values from 30 to 90 Shore D
Areas of application
Hardness testing for polymer materials
IRHD rubber hardness tester
Technical data
Hardness values from 30 to 100 IRHD M
Areas of application
Measurement of rubber hardness levels; for example, measurement of O-rings
Surface profilometer
Technical data
Tactile surface roughness measurement
Step height measurement of coatings in the µm range
Stylus radius: 2 µm
Areas of application
Measurement of surface profiles
Roughness measurement
